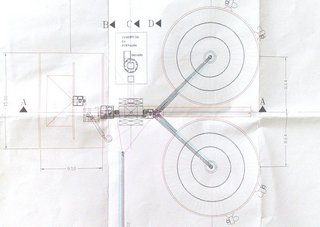

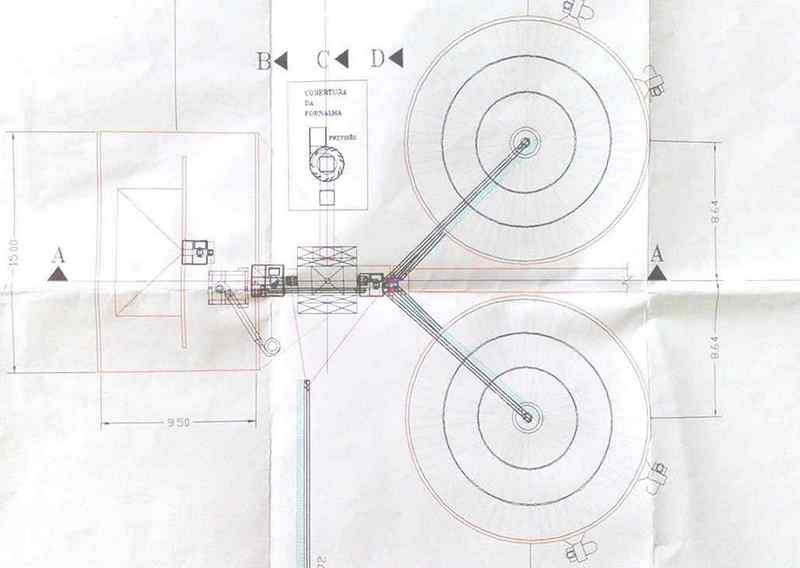

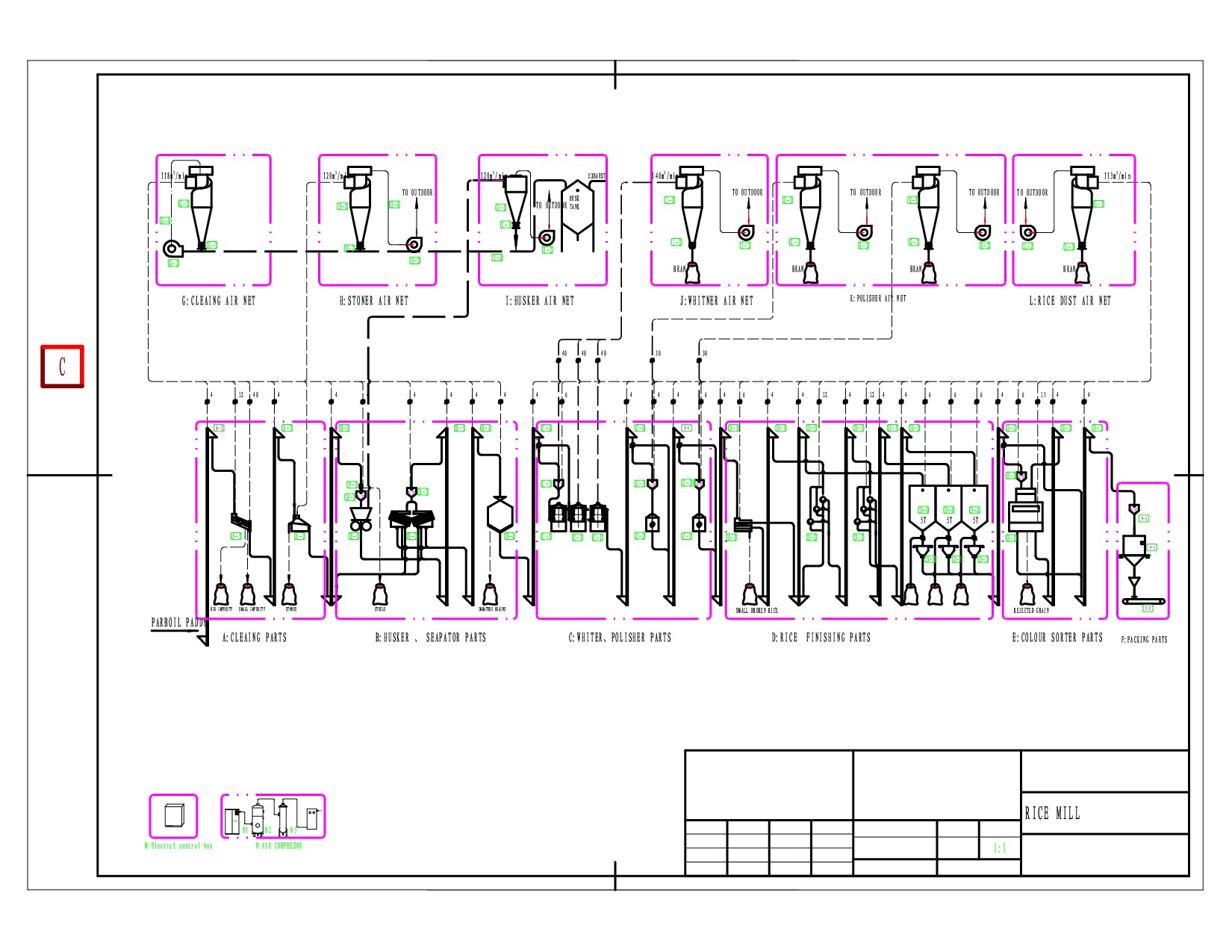

RICE MILLS, WE SUPPLY AND SERVICE COMPLETE RICE MILLS FOR PADDY RICE CONTACT US.
NEWS BULLETIN
Africasiaeuro has embarked on setting up a full composite Mill project in West Africa. This project received full governmental protection and support.
The following technical details are disclosed as of today :
Mill capacity metric tons : 120 / m
Yarn count : Ne 40/1 /2
Material : 100 % Cotton, combed
Spinning : Ring , OE
Enduser : Damasque
Location : Africa
Market : sub saharan Africa
REFERENCE NUMBER: K-4034
SURGICAL BAND PRODUCTION AND PACKING LINE
MORE HERE
REFERENCE NUMBER: K-3975
FELT NEEDLE LOOMS –AVAILABLE IN 36”, 48”, 60”, AND 66”.
PERFECT FOR MANY PRODUCT DEVELOPMENT INITIATIVES, AND ALSO FOR TESTING DIFFERENT NEEDLES AS WELL AS COMPARING VARIOUS NEEDLE INSERTION DEPTHS AND OTHER NEEDLE PUNCH VARIABLES.
FELT LOOM IS ENGINEERED AND MANUFACTUREDAS HIGH QUALITY EQUIPMENT WITH ULTIMATE USER-CONTROL. THE RESULTS ARE CONSISTENT HIGH-QUALITY FABRIC CREATED EXACTLY TO USER REQUIREMENTS EVERY SINGLE TIME
BUILT WITH PRECISION PARTS, SEALED GEAR MOTORS AND IS EQUIPPED WITH OPERATORFRIENDLY CONTROLS.
THERE ARE FOUR MODELS - 36”, 48”, 60”, AND 66”.
ALL MODELS ARE EQUIPPED WITH A DOUBLE MOTOR
ROLLER SPACING:ROLLERS ARE STRATEGICALLY SPACED TO ALLOW USERS TO STOP THE FABRIC FROM MOVING FORWARD AND GIVING THE APPROPRIATE SLIPPAGE AT ANY POINT IN THE PROCESS. THIS PREVENTS “PLEATING”.
DUAL MOTORS:THE NEEDLE MOTOR GIVES USERS THE ABILITY TO VARY THE DENSITY OF THE NEEDLE PUNCHES DEPENDING ON THEIR FIBERS AND SITUATION. IT CAN BE TOP MOUNTED TO MAXIMIZE TORQUE DIRECTED TO THE NEEDLES. THE ROLLER MOTOR ALLOWS USERS TO CONTROL THE FINISH ON THEIR FELT.
VARIABLE SPEEDS:BOTH ROLLERS AND NEEDLES CAN BE INDEPENDENTLY CONTROLLED ALLOWING THE FABRIC TO MOVE THROUGH AT A DEFINED RATE FROM 0% TO 100%
FORWARD AND REVERSE:PROVIDES THE CAPABILITY TO MOVE THE FABRIC BACK AND FORTH, FELT A PIECE, THEN TURN IT AROUND AND RUN IT BACK THROUGH WITH THE MOST CONTROL POSSIBLE ENABLING TEXTURING, DENSITY, ETC.
NEEDLE DENSITY:EIGHT ROWS PER EACH 6” NEEDLE BOARD SEGMENT, 96 NEEDLES PER SEGMENT ON ALL MODELS. THIS GIVES MAXIMUM NEEDLE PENETRATION AND MAXIMUM PUNCHES PER INCH. NEEDLES ALSO ARE VARIED IN POSITION AND DO NOT LINE UP IN STRAIGHT LINES, PREVENTING A
“CORDUROY” EFFECT AND CREATING CONSISTENTLY STRONG, STABLE FELT.
KNURLED 1.5” ROLLERS:THESE PROVIDE THE SURFACE AND GRIP NEEDED FOR BOTH ENDS OF THE PROCESS AS FIBER IS PUSHED THROUGH THE MACHINE AND AS FELT IS PULLED OUT OF THE OTHER SIDE.
TABLE HEIGHT: ALL MODELS ARE THE HEIGHT OF A TYPICAL COUNTER TO WORK BEST FOR MOST USERS AND PREVENT FATIGUE.
NEEDLE REPLACEMENT AND ACCESSIBILITY:NEEDLES CAN BE REMOVED AND REPLACED EITHER ONE AT A TIME OR AN ENTIRE NEEDLE BOARD CAN BE REPLACED AT ONCE. THE FRONT AND BACK OF THE MACHINE ARE EQUIPPED WITH A CLEAR WINDOW ENABLING USERS TO SEE THE NEEDLES
MOVING SO THEY CAN IDENTIFY ANY BENT OR BROKEN NEEDLES WHILE FELTING IS IN PROGRESS.
INDEPENDENT 6” NEEDLE BOARD SEGMENTS:THESE PROVIDE THE CAPABILITY TO COMPARE DIFFERENT NEEDLE PATTERNS SIDE BY SIDE.
LIGHT TABLE:AN OPTION THAT PROVIDES THE CAPABILITY TO VIEW THE FIBER DENSITY PRIOR TO THE FELTING PROCESS ENABLING A QUALITY CHECK BEFORE EACH PASS OF THE MATERIAL THROUGH THE MACHINE.
(EMAIL US FOR PICTURES)
REFERENCE NUMBER: K-3842
BALL FIBER MACHINE CAPACITY 100-120KG/H
ASSEMBLED WITH A BALL FIBER MACHINE AND A TRANSPORT BLOWER WHICH TRANSPORTS FINISHED BALL FIBER TO NEXT PROCESS FOR USE.
SUITABLE RAW MATERIAL IS CONJUGATED HOLLOW SILICONIZED POLYESTER FIBER SHORTER THAN 100mm, SUCH AS 3D, 7D, 15D, 32mm, 51mm, 64mm ETC.
BALL FIBER MACHINE INNER ASSEMBLY WITH AN OPENING ROLLER AND BALLING ROLLER. THIS MAKES THE PRODUCED BALL FIBER ELASTIC AND FLEXIBLE
MACHINE WITH PLC CONTROL SYSTEM THAT KEY PARTS ARE FROM THE FAMOUS WORLD BRANDS SUCH LIKE SIEMENS, OMRON AND SCHNEIDER ETC. STABLE QUALITY AND WITH LOCAL SERVICE TO SUPPORT YOU.
BALL FIBER SIZE ADJUSTABLE
FAN MADE FROM ALUMINUM MATERIAL, SO CAN RUN FAST AND QUIET
SIMPLE OPERATOR SKILL REQUIRED
DIFFERENT VOLTAGE AND SAFETY STANDARD CAN BE ORDERED ACCORDING TO THE CUSTOMER’S LOCAL REQUIREMENT
CE CERTIFICATION
DIMENSIONS: 4860 X 1630 X 1250mm
CONSISTING OF:
BALL FIBER MACHINE
1. AUTOMATIC CONVEYER BELT FEED FIBER AUTOMATICALLY WITH CONVEYER BELT ANTIDEVIATION DEVICE
2. OPENING ROLLER WITH SELFLOCK V WIRE TO ENSURE OPENING RATE BEFORE BALLING WITHOUT FIBER SILICONE DAMAGE, USAGE LIFE IS 4 TIMES NORMAL ONE.
3. SAFETY DOOR, MACHINE WILL NOT WORK IF SIDE DOOR IS OPENED.
4. MAIN STRUCTURE MADE BY COMPUTERIZED LASER METAL CUTTING MACHINE
5. POWDER PAINTED
6. EMERGENCY BUTTON
7. SPARE PARTS
TRANSPORTER BLOWER
1. FAN MADE FROM ALUMINUM MATERIAL
2. DYNAMIC BALANCE PROCESSING, MACHINE RUNS WITHOUT SHAKING OR NOISE.
PLC CONTROL BOX
1. ELECTRICAL KEY PARTS WORLD BRANDS, SUCH AS SIEMENS, OMRON ETC.
2. TRANSFORMER TO LOWER HIGH POWER TO LOWER POWER, ENSURE OPERATOR SAFETY.
3. AUSTRALIA SAFE STANDARD
EACH MOTOR CONNECTS BY 5 WIRES
4. OVERLOAD PROTECTION DEVICE.
(EMAIL US FOR PICTURES)
REFERENCE NUMBER: K-3932
HERGETH NONWOVEN CARDING MACHINE 2540mm YEAR 1992
MAKE: HERGETH
WIDTH: 2540mm
YEAR 1992
QUANTITY: 1
REFERENCE NUMBER: K-3933
SPINNBAU RANDOM III CARDING MACHINE 2500mm YEAR 1997
MAKE: SPINNBAU
WIDTH: 2500mm
YEAR 1997
QUANTITY: 1
REFERENCE NUMBER: K-3880
ROSENTHAL SHEETING SYSTEM
YEAR : 2009
WIDTH: 72"
MODEL WM-6-HDIBEAAAA6W6ST2-24
EVA REWINDER AND CONVEYOR
480V
FEEDS, MEASURES AND CUTS MATERIAL TO DESIRED LENGTH UP TO 72", THEN STACKS ON A LOWERING TABLE WITH AN INDEXING CONVEYOR. INCLUDES A REWINDER TO REMOVE LINER FROM EVA (ETHYLVINYL ACETATE), ALLEN BRADLEY CONTROL SYSTEM AND HEAVY DUTY BLADE
THIS SHEETER CURRENTLY HAS SLITTING. THE SLITTING BLADES CAN BE CHANGED TO PERF BLADES. BLADES ARE AN ADDITIONA CHARGE EACH AND THE SHEETER REQUIRES 8 PERF BLADES. IT WOULD ONLY BE ABLE TO PERF LONGWAYS, NOT ACROSS.
(EMAIL US FOR PICTURES)
REFERENCE NUMBER: K-2415
DREF MACHINE -24 POSITIONS YEAR 1982-DREF 2
TYPE: DREF 2 FT
YEAR: 1982
DRUM WIDTH: 270mm
TRANSVERSE: 10 1/4" (260mm)
24 POSITIONS
QUANTITY: 1
(EMAIL US FOR PICTURES)
REFERENCE NUMBER: K-3748
FULLY AUTOMATIC RAG TEARING PLANT - DELL ORCO VILLANI 5 DRUM, 1500mm
CONSISTING OF:
(1) FEEDER
CUTTER MACHINE 1200mm
CUTTER MACHINE 1200mm
AFTER CUTTING DEPARTMENT, THE SYSTEM HAS TWO ALTERNATIVES:
MIXING BOX
FEEDER
RAG TEARING DELL'ORTO E VILLANI YEAR 1984/5 WIDTH 1500mm
5 DRUMS
________________________________
MIXING BOX
FEEDER
RAG TEARING OFFICINE DI CHIAVAZZA YEAR 1978 WIDTH 750mm
5 DRUMS
________________________________
BALL/PRESS
(1) GUALCHIERANI 300 TON
AUTOMATIC
(1) ITALIANA PRESSE 200 TON
AUTOMATIC
(EMAIL US FOR PICTURES)
REFERENCE NUMBER: K-3863
VERTICAL CROSS LAPPER 2200mm
WEB HEIGHT: 80mm TO 90mm
DIMENSIONS: 3812mm WIDE X 4056mm LONG X 3357mm HIGH
WORKING WIDTH: 2200mm
CONVEYOR BELT: SIEGRING (MADE IN GERMANY)
TRAVERSE: 2HP
CONVEYOR: 2HP
(EMAIL US FOR DIAGRAM)
QUANTITY: 1
REFERENCE NUMBER: K-2657-A
WEB FORMING MACHINE- NEW - 2500mm working width
WEIGHT BETWEEN 250 - 2000 G/M².
FOR ALMOST ALL TYPES OF FIBER
VERY LITTLE ENERGY CONSUMPTION, EASY TO CLEAN AND ALMOST MAINTENANCE-FREE, EASILY ACCESSIBLE TO ALL PARTS, ALL PARTS ARE EASILY REMOVABLE IN CASE OF DAMAGE
FIBER CAN BE SEEN FROM THE UPPER CHUTE UNTIL THE FINISHED WEB
THE FAN MOTOR DESIGNED FOR 5.5 KW AND HAS INVERTER DRIVE IN ORDER TO ADJUST THE REQUESTED AIRFLOW
THE WORKING WIDTH IS A FIRM WIDTH
WHEN A NARROW WEB IS DEMANDED, THE EDGES MUST BE CUT
THIS IS POSSIBLE WITH A SLITTER ON BOTH SIDES
THE CUT EDGES ARE IMMEDIATELY RETURNED TO THE BLENDING LINE, AND MIXED UP WITH THE VIRGIN FIBER
THE MACHINE CONSISTS OF A CHUTE FEED, CHUTE WITH OSCILLATING BACK WALL FOR FORMING A MAT ON A CONVEYOR BELT
THIS MAT MOVES ACROSS A WEIGH BELT INTO AN OPENER WITH FEED TROUGH SYSTEM, IN ORDER TO KEEP THE FIBER AS LONG AS POSSIBLE FOR THE OPENING PROCESS, THE OPENING TAKES PLACE BY A CARD WIRED DRUM
FROM THERE THE FIBER DROPS IN A CHUTE AND IS SUCKED ON A PERFORATED DRUM AND FORMS THE ACTUAL MAT, GOES ACROSS A WEIGHBELT IN FRONT OF AN OVEN OR NEEDLE LOOM
THE WEIGH BELT CONTROLS THE ACTUAL FINISHED BATT IN COOPERATION WITH THE FIRST
WEIGH BELT
CONSITING OF:
METAL DETECTOR
MODEL HFE 06E
DESIGNE: APERTURE TYPE
TUBE ACCESS 250mm
CONTROL PANEL: INCL. WITH 10 M INTERCONNECTING CABLE
DIVIATION BOX
DESIGNE WITH DOUBLE SWITCH BLADE
PNEUMATICALLY OPERATED
OPERATED BY THE DETECTOR
MAINTENANCE UNIT FOR COMPRESSED-AIR WITH ACCESSORIES
METAL CATCH BOX
SIZE: 1000mm X 1000mm, 1500mm HEIGHT
MADE FROM PERFORATED SHEET
SUPPORT FRAME FOR FANS
HEIGHT: 2000mm
SUBTOTAL AMOUNT ITEM 02/0 – 02/0: 6.636,00
DUST EXTRACTION FAN AND POWDER SUCTION
OUR MODEL: E4/560/250
DIAMETER IMPELLER: 560mm
BLADE SHAPE: CONICAL
TUBE ACCESS: 250mm
POWER INSTALLED: 5.50 KW
DUST FILTER
TOTAL HEIGHT: 5550mm
FILTER SLEEVES: 3750mm
INLET SOCKET: DIA 300mm
SIZE OF PLATFORM: 1.250mm X 1.250mmX1350mm HEIGHT
THROTTLE FLAPS
APPLICATION: FOR AIRSTREAM ADJUSTMENT
TUBE ACCESS: 300mm
LENGHT: 400mm
CHUTE FEED WITH VOLUMETRIC FEEDING DEVICE:
APPLICATION: FOR FIBER STORING AND DELIVERY TO
THE WEBFORMER
WORKING WIDTH: 2500mm
DEPTH: 750mm
NUMBER OF ROLLERS: 2 FEED ROLLERS AND 1 OPENING ROLLER
HEIGHT: 4500mm OVER ALL
AIR RELEASE: VIA DUST EXTRACTOR
POWER INSTALLED. 5.63 KW
WEIGH BELT
DESIGN: WITH SEPARATE DRIVE
BELT RESTS ON FOUR LOAD CELLS
WORKING WIDTH: 2500mm
LENGHT: 645mm
POWER INSTALLED: 0.55 KW
FIBER OPENING HEAD
DESIGN: WITH FEED TROUGH AND CARD WIRED OPENING ROLLER
WORKING WIDTH: 2500mm
DESIGN: BY MEANS V-BELTS
DRIVE FEED ROLLER: CHAIN DRIVE
POWER INSTALLED: 18.75 KW
WEB FORMER
DESIGN: AIR CHANEL SYSTEM
WEB THICKNESS: ADJUSTABLE BY MEANS A MOTOR
WORKING WIDTH: 2500mm
POWER INSTALLED: 12 KW
SUPPORT FRAME FOR WEIGH BELT
HEIGHT: ABOUT 1500mm
MAIN CONTROL PANEL WEBFORMING ONLY
INCLUDES: ALL THE PARTS BEING MENTIONED IN
THIS QUOTATION CONTROLED BY
SIEMENS SIMATIC S7-300 OPERATED BY SIMATIC OP 270 AND OP 277
10" HOWEVER EXCLUDING OVEN AND ADDITIONNAL PARTS FOR THERMOBONDING
ALL INVERTERS: MITSUBISHI BRAND
AIR CONDITION: INCLUDED 4000 WATT
TELE SERVICE MODUL INCLUDED
SURGE PROTECTION: INCLUDED
VOLTAGE SINGLE PHASE 240 V 50 HZ
VOLTAGE 3 PHASES: 415 V 50 HZ
REFERENCE NUMBER: K-3256
HERGETH NON WOVEN CARDING MACHINE 2500mm
VOLUMETRIC HOPPER FEEDER MAKE TRUTZSCHELER TYPE FB 2500.
BREAST DIA. 1250mm WITH 4 COUPLES OF WORKER AND STRIPPER
CYLINDER FOR MATERIAL TRANSPORT DIA 600mm
MAIN CYLINDER DIA 1500mm WITH 5 COUPLES
DELIVERY DOFFERS DIA 700mm EACH
MAIN ELECTRONIC BOARD FOR INVERTER CONTROL.
PRODUCING ABOUT 500 KGS HOUR
QUANTITY: 1
REFERENCE NUMBER: K-3262
F.O.R. CONVENTIONAL NONWOVEN CARD 2500mm YEAR 1983
MAKE: F.O.R.
MODEL: HL-2500
YEAR: 1983
380V/3PH/50Hz
BREAST
MAIN CYLINDER
TRANSFER CYLINDER
2ND MAIN CYLINDER
EXIT IN DOUBLE DOFFER
QUANTITY: 1
REFERENCE NUMBER: K-2767
THERMOBONDING OVEN -3 HOT SECTIONS
01 COOLING SECTION
ONE THERMOBONDING OVEN 03 SECTIONS OF 3.3 M EACH
WITH ADJUSTABLE DOUBLE BELT FOR PRODUCT CALIBRATION- BELTS WIDTH : 3.200mm
ONE FELT COOLER VIA AIR FLOW, BETWEEN THE OVEN BELTS, 3000mm LONG
WITH DOUBLE BELT, ADJUSTABLE
WEB FORMATION CARDING AND CROSS LAPPING
RANGE OF APPLICATION WADDING FOR INSULATION, QUILTING, WINTER-CLOTHS, ETC
FIBERS BLEND POLYSTER LOW AND BICOMPONENT POLYESTER
PROCESS THERMOBOND VIA HOT AIR AND COOLING
WEIGHT OF THE WEB 500-800 GSM
INITIAL WEB WIDTH
MAX: 3000mm, AT OVEN ENTRY
MECHANICAL SPEED 1-15 MMIN, FOLLOWING THE WEIGHT OF WADDING
WEB FINAL THICKENSS
25-50mm
3 HOT SECTIONS FLAT OVEN -
TYPE: FLAT OVEN, SINGLE PASS, GAS HEATED WITH AIR TROUGH TECHNOLOGY. (POSITIVE PRESSURE IN ONE
SIDE, NEGATIVE IN THE OPPOSITE)
HOT SECTIONS: 3
LENGTH OF EACH SECTION: 3300mm (PLUS PANELS)
ADDITIONAL SECTION: ENTRY SECTION + BUILT IN COOLING + EXIT SECTION
MATERIAL TRANSPORTATION: 02 BELTS IN FIBERGLASS PTFE COATED, OR LOWER IN FIBERGLASS &
TOP IN FINE MASH STEEL, 3200mm WIDE
BELTS ADJUSTABLE DISTANCE FROM CONTROL BOARD UP TO 120MM, WITH MOTORS, SCREW JACKS
AND DISPLAY IN CONTROL PANEL. ADJUSTING MADE IN 3 POINTS, FROM CONTROL PANEL
TOP BELT SUPPORTED WITH MAGNETS ALL ALONG THE OVEN (IN CASE OF STEEL BELT).
MECHANICAL SPEED: 1-15 MMIN
02 SYSTEMS FOR BELTS DRIVING, VIA LARGE DRIVEN ROLLS
02 SYSTEMS FOR BELTS TENSIONINING, VIA PNEUMATIC PISTONS
02 SYSTEM FOR BELTS GUIDING, VIA SENSORS AND MOTORS
NO 03 AIR FANS DRIVEN WITH FREQUENCY CONVERTERS, STEEPLES ADJUSTABLE TO FORCE THE AIR
TROUGHOUT THE WEB AND TROUGH THE BURNER
ONE FAN EACH SECTION
AIR PLENUMS FROM TOP AND FROM BOTTOM AND ASPIRATION THOUGHT THE FELT, FOR COMPLETE
PASSING OF THE AIR TROUGH THE PRODUCT.
POSSIBILITY OF ADJUSTING THE AIR FROM TOP AND AIR FROM BOTTOM, TO EQUALIZE THE SURFACES
POSSIBILITY OF INVERSION THE AIR FLOW IN EACH SECTION (TOP TO BOTTOM OR BOTTOM TO TOP)
POSSIBILITY OF CLOSING THE AIR ON THE SIDE OF THE WEB, BY HAND OPERATED BAFFLES TO
AVOID LOSS OF EFFICIENCY. WEB WIDTH COULD GO FROM 3000mm TO 2500mm
HEATING BY 3 GAS BURNERS OF 250.000 KCALH, MODULATING ACTING, PID CONTROLLED.
ONE EACH SECTION INDIVIDUALLY REGULATED IN EACH SECTION
TEMPERATURE UP TO 220°C FUEL: NATURAL GAS, REQUIRED PRESSURE: 50 MBAR AT THE BURNER
INCORPORATED SMOKES EXTRACTING SYSTEM IN EACH SECTION ADJUSTABLE INDEPENDENTLY, TO
AVOID ANY SMOKES OUT OF THE OVEN
LARGE DOORS IN EACH SIDES, FOR INSPECTION
INSULATION MADE WITH SANDWICH PANELS FILLED WITH PRESSED ROCKWOOL.
NET FILTERS INTO THE AIR CHANNEL THAT COULD BE CLEANED WITHOUT OPENING THE OVEN.
FINAL BUILT IN COOLING, EQUIPPED WITH TWO FAN. LENGTH: 3000mm
DOUBLE BELT FOR FINAL CALIBRATION
FANS WITH FREQUENCY CONVERTER TO ADJUST THE FLOW, DIRECTLY CONTROLLED FROM OPERATOR PANEL. SYSTEM TO CLOSE THE AIR ON THE SIDE OF THE WEB, TO AVOID LOSS OF EFFICIENCY
01 MAIN POWER BOARD, TO BE LOCATED AWAY FROM THE LINE. PLC AND INVERTERS BY
SIEMENS
01 CONTROL DESKS WITH OPERATORS PANELS, LOCATED ON THE LINE
WIRING VIA WITH PROFIBUSETHERNET, FROM PLC TO REMOTE CONTROL DESK
TELESERVICE FOR FAST CONNECTION (VIA A PHONE LINE), WITH BOMBI SYSTEM IN ITALY
TOTAL HEATING POWER = 750.000 KCALH
TOTAL ELECTRIC ENERGY INSTALLED = 80 KW
AIR FLOW IS REVERSIBLE IN EACH SECTION. IT COULD BE SET IN A WAY THAT THE AIR IS
BLOWED FROM TOP AND IT IS ASPIRATED FROM BOTTOM, OR, BACKWARD. THE REGULATION IS
INDEPENDEND FOR EACH SECTION
QUANTITY: 1
REFERENCE NUMBER: K-2798
THERMOBONDING LINE WITH AIRLAY MACHINE LAROCHE 2400mm YEAR 2000
2 CHARGERS LAROCHE, 1600mm WORKING WIDTH
2 OPENERS LAROCHE, 1000 + 1500mm WIDTH
1 AIRLAY MACHINE LAROCHE
1 OVEN SICAM
QUANTITY: 1
REFERENCE NUMBER: K-2687
PIERRET CT60 GUILLOTINE CUTTER YEAR 2002 TO 2003
MAKE: PIERRET
MODEL: CT60
YEAR: 2002 TO 2003
STANDART
QUANTITY: 1
REFERENCE NUMBER: K-2688
PIERRET N40 GUILLOTINE CUTTER 400mm YEAR 2011
MAKE: PIERRET
MODEL: N40
YEAR: 2011
WIDTH: 400mm
400 CUTS PER MINUTE
QUANTITY: 1
(EMAIL US FOR PICTURES)
REFERENCE NUMBER: K-2790
AIRLAY NONWOVEN LINE WITH THERMOBONDING OVEN
THE LINE IS CONSISTING OF:
5 BALE OPENERS WITH FULLY AUTOMATIC SCALES AND CONVEYORS.
1 PRE-OPENER ERKO, 1200 mm WORKING WID YEAR OF CONSTRUCTION 2001.
1 OPENER LAROCHE, 1800mm YEAR 2004
1 FINE OPENER HOLLINGSWORTH, 1000mm YEAR 1993
1 BLENDING CHAMBER TEMAFA, YEAR 199 90 QBM VOLUME
1 FILTER UNIT, CONTINUOUS DRUM FILTER WITH PIPING, CAPACITY 70.000 QBM/H
1 SET OF FIBER TRANSPORT VENTILATORS WITH PIPES
1 AIRLAY MACHINE LAROCHE FOR WEB FORMATION, YEAR 2003
SUITABLE FOR 600 TO 2000 GRAMS/SQM, 300-900 KG/H.
1 NEEDLE LOOM DILO OD-II, 2200mm YEAR 1988
1 THERMOBONDING OVEN SCHOTT + MEISSNER TYPE TOPCON YEAR 2004, 2400mm WORKING WIDTH LENGTH IS 10,000mm, OVEN IS GAS HEATED AND INCLUDES A COOLING ZONE
1 LONGITUDINAL AND CROSS CUTTING MACHINE AUTEFA 2500mm YEAR 2004
1 WIND UP STATION, 2500mm YEAR 2004
EXCELLENT CONDITION
QUANTITY: 1
RUNNING NOW
REFERENCE NUMBER: K-3366
DOANEEDLE LOOM 2500mm YEAR 2008
ONLY 400 RUNNING HOURS
TYPE 8086T
DOWNSTROKE WORKING WIDTH 2500mm
STROKE HEIGHT 70mm
1200 STROKES/MIN
FEEDING BY FINGER ROLLER
DELIVERY ROLLER SYSTEM
2860 NEEDLES/ MT. DUST SUCTION UNIT
CENTRAL OILING SYSTEM
NEEDLING DEPTH CONTROLLED BY SEPARATE VARIABLE MOTORS
NEEDLE BOARDS ETC. POSITIONED
AND FIXED BY PNEUMATICAL,CHANGING BOARDS TAKES ONLY FEW MINUTES
QUANTITY: 1
REFERENCE NUMBER: K-2797
PRODUCTION LINE FOR SANITARY NAPKINS YEAR 2000
MAKE: W + D
YEAR 2000
INCLUDING VARIOUS FORMATS
WITH OPTIMA LBT AND BAG STACKER
QUANTITY: 1
REFERENCE NUMBER: K-3749
DREF SPINNING MACHINES 6 SPINDLES EACH YEAR 1985 AND 1995
(1) DREF II MACHINE YEAR 1995 WITH 20,443 HOURS
(1) DREF I MACHINE YEAR 1985 WITH 56,407 HOURS
TRAVERSE 300mm
2/86 FT- 6E/12
QUANTITY: 2
REFERENCE NUMBER: K-3485
HERGETH NONWOVEN CARDING LINE 2500mm YEAR 1984
MAKE: HERGETH
WIDTH: 2500mm
YEAR 1984
DOUBLE DOFFER
1 RESERVE SILO
1 FEEDING
1 CARDING
3 CONTROL PANEL
1 LAPPER 671
1 FILTER SK
QUANTITY: 1
(EMAIL US FOR PICTURES)
REFERENCE NUMBER: K-3655
JAMES HUNTER MODEL 22 DOUBLE PUNCH NEEDLE LOOM 2500mm YEAR 1972 WITH WINDER
MAKE: JAMES HUNTER
MODEL: 22
WIDTH: 2500mm
CONVERTED TO HEAVIER STRIPPER JACKS (CALLED WORM GEAR JACKS) WITH 1/2" STRIPPER PLATESWAS RECONDITIONED AT MORRISON IN 1997, WITH 6" FEED ROLL, NEW CONNECTING ROD BEARINGS,MAIN BEARINGS, WRIST PIN BEARINGS, AND LABYRINTH PLATES TO STOP OIL LEAKAGE.
THERE ARE 12 BOARDS WITH 8 NEEDLED UP, 3 NEEDLES OUT, AND 1 BLANK THAT WAS NEVER DRILLED OUT
INCLUDES MOTORS AND DRIVE PANEL
1 KRANZ ACCUMULATOR
1 WALKBOARD
1 WINDUP WITH SLITTER (3 BLADES)
QUANTITY: 1
(EMAIL US FOR PICTURES)
REFERENCE NUMBER: K-2847
MORRISON SHRINKAGE MACHINE 1800mm YEAR 2002
MAKE: MORRISON
WIDTH: 1800mm
YEAR 2002
WITH INFEED - WETTING BOX - PRE SHRINK UNIT
FELTING UNIT ( DIAM 2500mm) - EXIT
WITH PLC TOUCH SCREE CONTROL
AC INVERTOR SYSTEM
QUANTITY: 1
(EMAIL US FOR PICTURES)
INDIGO PLANT
BENNINGER BLEACHING RANGE
REGGIANI PRINTING
MORE MACHINES : TEXTILE MACHINES
Info and pics HERE
YARN OFFER
Combed Cotton Yarn, Ne 40 /1 , 1 - Container 40 ft available :contact us for details : aheneghana(at)gmail.com
MACHINE OFFERS : HERE
SIGNUP NEWSLETTER
DISCUSSION: NEW OE SPINBOX ?
We received notice of a new breakthrough in OE spinning technology. It is expected that breakthroughs will follow, however, the article claims siginificant changes in yarn structures of the new OE yarn.
Further details were given, including a detailed microscopy. Photography showing conventional OE spun yarn, and a new revolutionary OE yarn with no or little wrapper fibers visible.
It this yarn structure can be obtained by applying a new spinbox, we must speak of a major breakthrough.
It is however still unclear who has developed the new spinbox, and which aspects and parts are responsible for the new yarn design.
What is of interest is how verificable the claim is. We will report more after we clarifiy the claim.
Read more HERE
RICE PROCESSING MILLS
PADDY RICE PROCESSING MACHINES
INDIGO FABRICS, HANDWOVEN AND HANDDIED
Indigo Textile fabrics - Indigo dye is extracted from a plant with the same name. These are shrubs, though some are herbaceous, some can grow into small trees up to 5–6 m high. Its leaves varyin size but normally are between 3–25 cm long. Blossoms are small, growing on racemes 2–15 cm long. Indigofera tinctoria and Indigofera suffruticosa are used to extract dye. This dye is still used in textiles today to manufacture traditional Indigo tie and die prints ( see photography ).
Indigo textile fabrics would normally require 100 % Cotton as raw material. In today's world however we find also Rayon fiber - or Viscose fiber textile fabrics being used with similar cellulose content which makes dying with Indigo easy.
Textile making machines: jeans + tshirts - how are jeans made Top quality Italian as well as other top brand clothes are almost entirely made with high quality RIETER machines (see article below). The world s best textile brands clothes are produced with modern technology, such as Airjet Spinning technology. Airjet spinning achieves a higher production rate than any conventional and unconventional spinning machines , as well as a uniformity CV % with lowest imperfections , such as thick, thin places and neps.
With Textile machines ( from bale to yarn concept ), including Airjet spinning systems, and OE Spinning machines - such as manufactured by RIETER.COM - of which AFRICASIAEURO is a representative, one can expect the highest degree of quality due to a consistent, high quality standard in the yarn manufacture process . click here for more.
On the yarn front we will also report on changes in manufacturing processes, especially on innovations by RIETER, our principals. Rieter has been in the forefront of Textile machine manufacturing for over 150 years. Their quality is unsurpassed, Swiss clock precision combined with excellent marketing and sales make RIETER a formidable force on the Textile machine market.
We are proud to be associated with RIETER MACHINEWORKS WINTERTHUR.
AFRICASIAEURO - in conjunction with reputable manufacturers - has developed concepts for RENEWABLE ENERGY, alternative forms of environmentally friendly energy, derived from agriculture based byproducts of various resources. Featuring derivatives of Palm Oil manufacturing industry as a substantially important source of input for cheap and economical generation of Biomasse. Our briquettes and pellets lines can be seen right hand.
Power conservation with the introduction of contactless power capacitorbanks. Power capacitorbanks have a vast technological advantage over past designs, eliminating use of contactors which lead frequently to failures and breakdowns. The new technology operates flawless with contactless devices ( no moving parts , eliminates the risk of flashes and the resulting transient voltages , DIN standard ). Africasiaeuro power
(New Textile project with support of Government in West Africa)
Video by Africasiaeuro videos youtube aheneghana
Photography, excerpts: photo album page, pinterest, photoshelter
Subscribe to our newsletter
( Scan QR code with your mobile phone )
